BOSS.jl

BOSS stands for "Bayesian Optimization with Semiparametric Surrogate". BOSS.jl is a Julia package for Bayesian optimization. It provides a straight-forward way to define a BO problem, a surrogate model, and an acquisition function. It allows changing the algorithms used for the subtasks of estimating the model parameters and optimizing the acquisition function. Simple interfaces are defined for the use of custom surrogate models, acquisition functions, and algorithms for the subtasks. Therefore, the package is easily extendable and can be used as a practical skeleton for implementing other BO approaches.

Bayesian Optimization

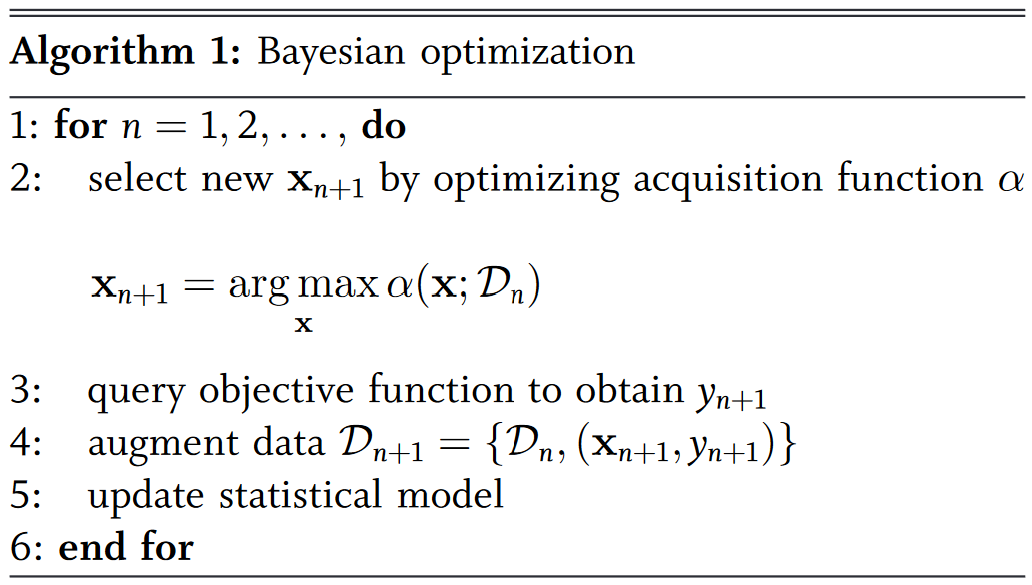

Bayesian optimization is a general algorithm for blackbox optimization (or active learning) with expensive-to-evaluate objective functions. The main focus is on optimal experiment design (i.e. selection of optimal evaluation points) to minimize the number of required objective function evaluations. The general procedure is showcased by the pseudocode below. [1]

The real-valued acquisition function $\alpha(x)$ defines the utility of a potential point for the next evaluation. We maximize the acquisition function to select the most useful point for the next evaluation.

Once the optimum $x_{n+1}$ of the acquisition function is obtained, we evaluate the blackbox objective function $y_{n+1} \gets f(x_{n+1})$ and we augment the dataset.

Finally, we update the surrogate model according to the augmented dataset.

See [1] for more information on Bayesian optimization.

Optimization Problem

The problem is defined using the BossProblem structure and it follows the formalization below.

We have some (noisy) blackbox objective function

\[y = f(x) = f_t(x) + \epsilon \;,\]

where $\epsilon \sim \mathcal{N}(0, \sigma_f^2)$ is a Gaussian noise. We are able to evaluate $f(x_i)$ and obtain a noisy realization

\[y_i \sim \mathcal{N}(f_t(x_i), \sigma_f^2) \;.\]

Our goal is to solve the following optimization problem

\[\begin{aligned} \text{max} \; & \text{fit}(y) \\ \text{s.t.} \; & y < y_\text{max} \\ & x \in \text{Domain} \;, \end{aligned}\]

where $\text{fit}(y)$ is a real-valued fitness function defined, $y_\text{max}$ is a vector defining constraints on outputs, and $\text{Domain}$ defines constraints on inputs.

Surrogate Model

The surrogate model approximates the objective function based on the available data. It is defined using the SurrogateModel type and passed to the BossProblem structure. The basic provided models are the Parametric model, the GaussianProcess, and the Semiparametric model combining the previous two.

The predictive distribution of the Parametric model

\[y \sim \mathcal{N}(m(x; \hat\theta), \hat\sigma_f^2)\]

is given by the parametric function $m(x; \theta)$, the estimated parameter vector $\hat\theta$, and the estimated evaluation noise deviations $\hat\sigma_f$. The model is defined by the parametric function $m(x; \theta)$ together with parameter priors $\theta_i \sim p(\theta_i)$. The parameters $\hat\theta$ and the noise deviations $\hat\sigma_f$ are estimated using the ModelFitter based on the current dataset.

The GaussianProcess (GP) is a nonparametric model, so its predictive distribution is based on the whole dataset instead of some vector of parameters. The predictive distribution is given by equations 29, 30 in [1]. The model is defined by choosing priors for all its hyperparameters (length scales, amplitudes, and noise deviation).

The Semiparametric model combines the previous two models. It is a Gaussian process, but uses the parametric model as the prior mean function of the GP (the $\mu_0(x)$ function in equation 29 in [1]). An alternative way of interpreting the semiparametric model is that it fits the data using a parametric model and uses a Gaussian process to model the residual errors of the parametric model. The model is defined by defining both a Parametric model and a GaussianProcess and passing them to the Semiparametric model.

A custom surrogate model can be defined by subtyping the SurrogateModel type and implementing the defined API.

Acquisition Function

The acquisition function is defined using subtypes of the AcquisitionFunction type and passed to the BossProblem. In case of optimization problems, the fitness is defined as a part of the AcquisitionFunction.

The most commonly used acquisition function, ExpectedImprovement, is provided. Custom acquisition functions can be defined by extending the AcquisitionFunction type.

The Sub-Algorithms

The algorithms which are used to perform the sub-steps of the BO procedure are defined using the subtypes of the ModelFitter type and the AcquisitionMaximizer type. They are passed to the main function bo! as keyword arguments.

The model parameters can either be estimated in a MAP fashion (using for example the OptimizationMAP model fitter) or sampled via Bayesian inference (using the TuringBI model fitter). Other model fitters are also available and custom ones can be defined by extending the ModelFitter type.

The most basic AcquisitionMaximizer is the OptimizationAM. Other acquisition maximizers are also available and custom ones can be defined by extending the AcquisitionMaximizer type. Batching of the objective function evaluations can be achieved by wrapping any other acquisition maximizer in SequentialBatchAM.

Termination Condition

The termination condition of the BO procedure can be defined using the TermCond type. The termination condition is passed to the main function bo! as a keyword argument.

The basic IterLimit termination condition is provided. Custom termination conditions can be defined by extending the TermCond type.

Active Learning

The BOSS.jl package currently only supports optimization problems out-of-the-box. However, BOSS.jl can be easily adapted for active learning by defining a suitable acquisition function (such as information gain or Kullback-Leibler divergence) to use instead of the expected improvement (see AcquisitionFunction).

References

[1] Bobak Shahriari et al. “Taking the human out of the loop: A review of Bayesian optimization”. In: Proceedings of the IEEE 104.1 (2015), pp. 148–175
